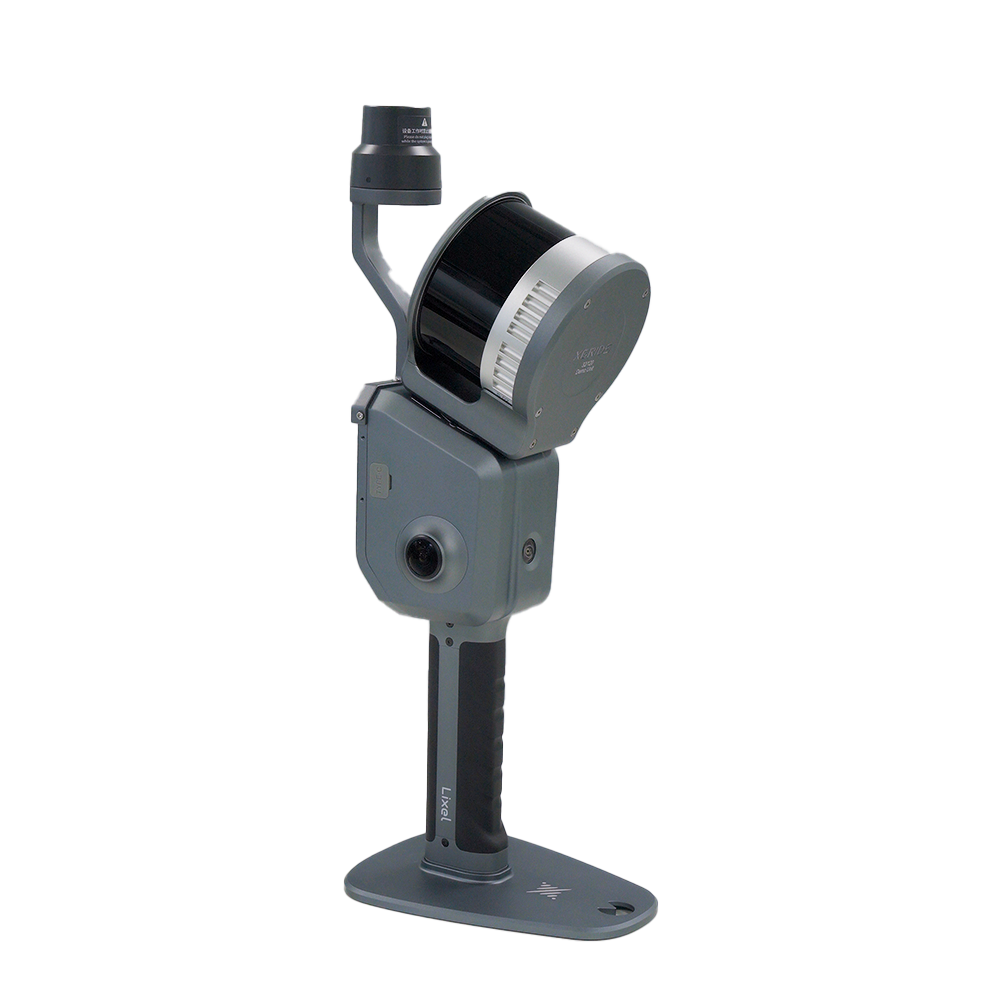

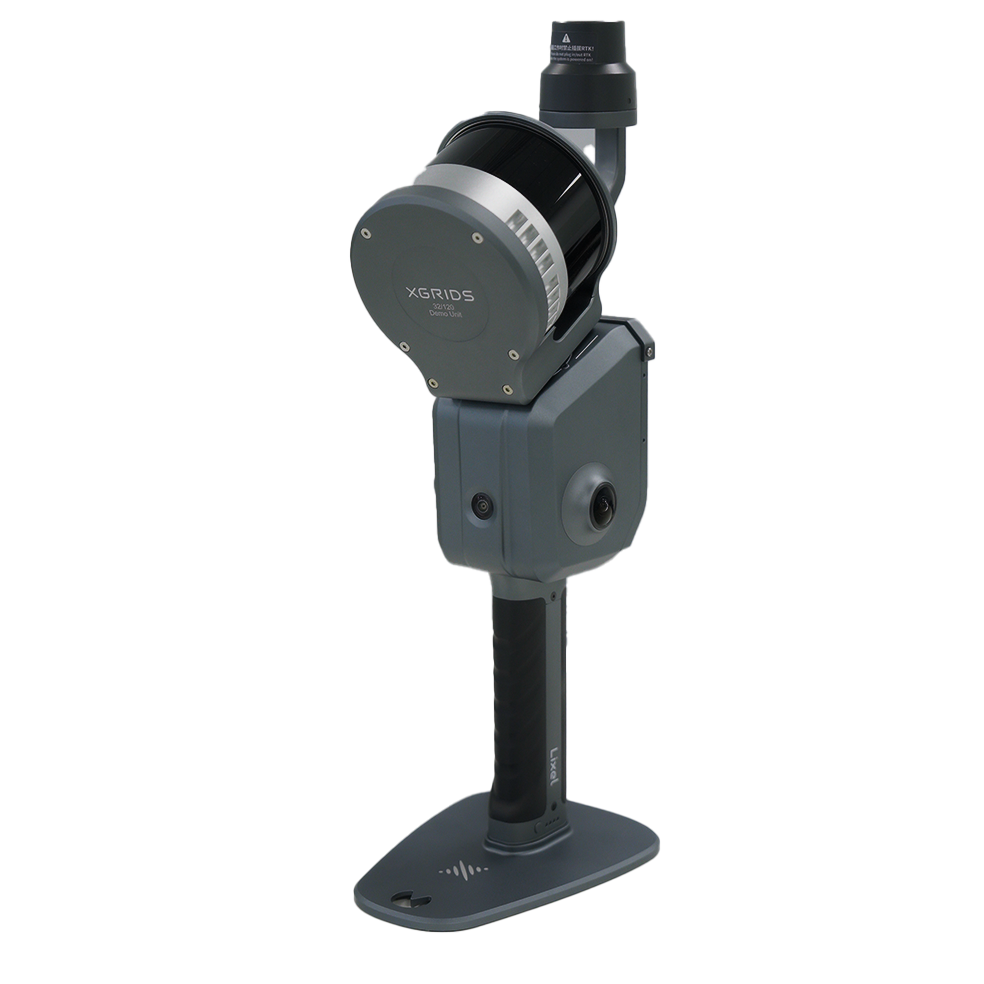

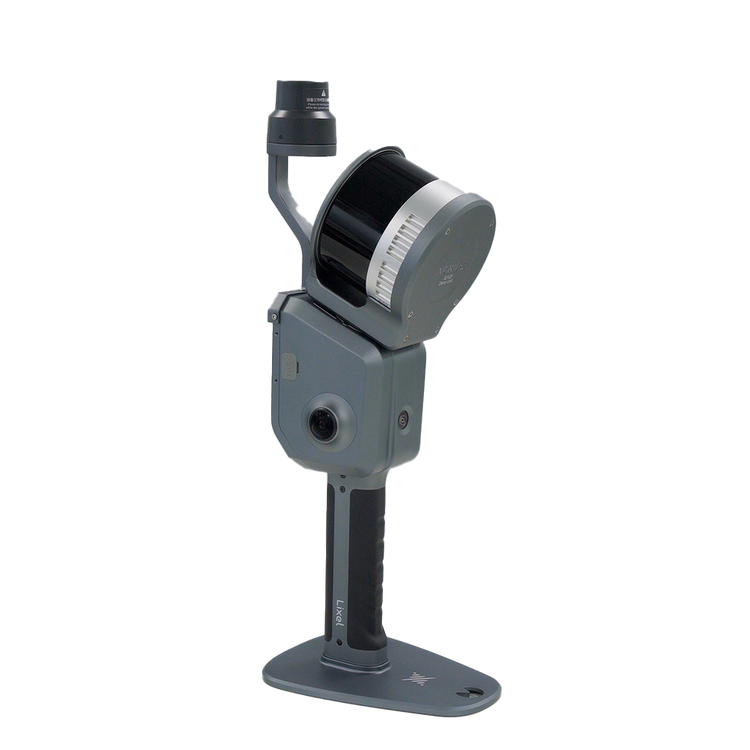

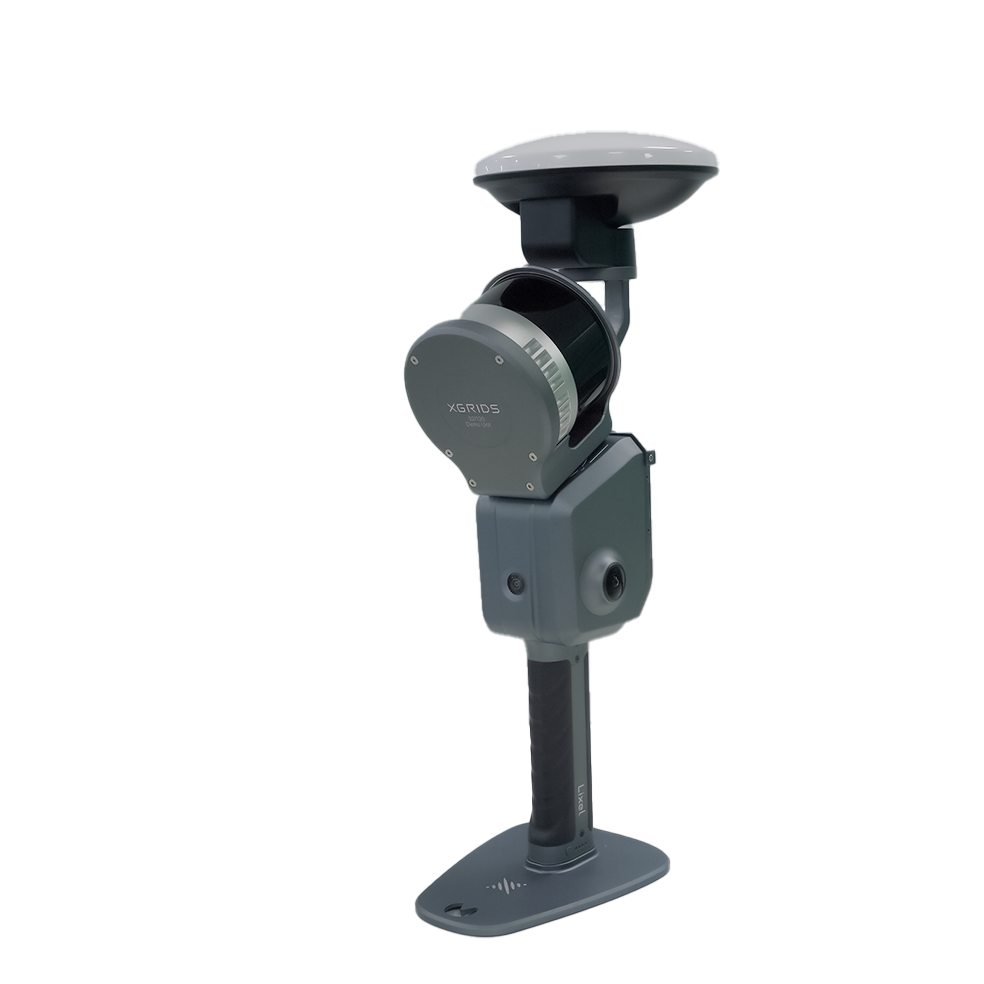

The XGRIDS Lixel L2 Pro is a hand-held LiDAR scanner that generates real-time, coloured point maps with high precision, ideal for surveying and mapping applications, such as building floor plans, archaeological site documentation, or forestry analysis. This fully integrated solution combines LiDAR for precision mapping and capturing fine details, panoramic cameras for providing rich colour and comprehensive visual context, and an onboard IMU to ensure accurate tracking of location and movement, even in challenging environments. The 16 Channel model supports 120m range Its all-in-one portable design makes it perfect for detailed modelling in confined spaces, such as underground tunnels, narrow hallways, or complex machinery.
This fully integrated system combines:
LiDAR for Precision Mapping: Equipped with a Class 1 laser operating at 905nm, the LiDAR sensor provides 1mm and 5mm LiDAR modes and offers the following variations:
16 Channel
Scanning range of 0.5m to 120m at 320,000 points per second.
32 Channel
Scanning range of 0.5m to 120m at 640,000 points per second.
32 Channel (Extended Range)
Scanning range of 0.5m to 300m at 640,000 points per second.
Panoramic Cameras: Features 2×48MP cameras with a 190°×190° field of view, capturing high-resolution images to provide rich colour information and comprehensive visual context, ideal for visual positioning and scene documentation.
Onboard IMU: Integrates a high-precision Inertial Measurement Unit (IMU) to track movement and orientation accurately, providing stable positioning even in environments with limited GPS signal, such as underground or indoor spaces.
Key Features
Real-Time Coloured Point Mapping: Visualise detailed maps instantly with colour information for enhanced clarity.
Portable All-in-One Design: Perfect for working in confined spaces such as underground tunnels, narrow hallways, or complex machinery.
High Precision Data Capture: Designed for professionals requiring highly accurate data for surveying, mapping, or modelling.
Durable Build: Rated IP54 for dust and water resistance, ensuring reliable performance in tough environments.
Lightweight Design: Weighs 1.7 kg without battery, making it easy to handle during extended use.
Battery Life: Provides an operating time of 1.5 hours and features a 46.8Wh battery that is easy to charge and replace.
Storage Capacity: Equipped with a 1TB SSD for storing extensive point cloud data and images.
Wireless Module: Supports WiFi and Bluetooth, making it convenient to transfer data without physical connections.
True SLAM with real-time output
L2 Pro delivers real-time point cloud data that rivals the accuracy of L2's post-processing, with no waiting—instantly ready for use.
The real-time colouring effect rivals post-processing quality
L2 Pro (Real-time output)
Absolute Vertical Accuracy - 3cm
Absolute Horizontal Accuracy - 3cm
Relative Accuracy - 2cm
