Overview

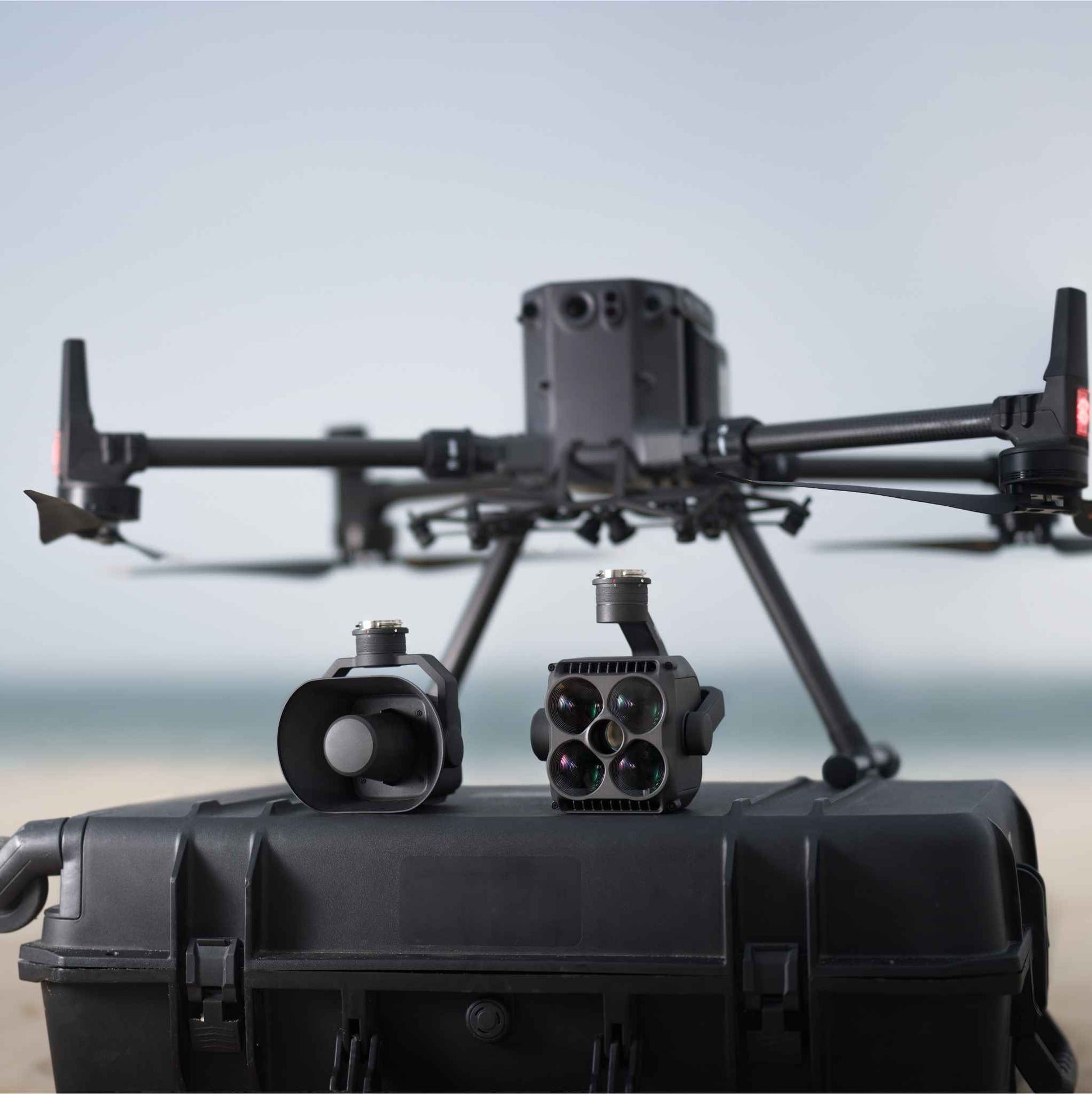

Zenmuse S1 is DJI's first spotlight designed for multi-payload drone platforms, compatible with DJI Matrice 400, Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance, and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations.
Intelligent Beam Alignment
When mounted with the Zenmuse H30 Series on Matrice 400, Zenmuse S1 employs gimbal synchronization and software algorithms to automatically calibrate its optical center in real time, intelligently aligning with the camera view and effectively preventing light deviation.
Payload Protection
Zenmuse S1 is equipped with multiple protection mechanisms for temperature, overcurrent, power, and more, enhancing the product's reliability and lifespan.
Burn Protection
Zenmuse S1 features a plastic casing [7] with a contact surface temperature that does not exceed 50° C (122° F), [1] effectively preventing burn risks.
Synchronized Control

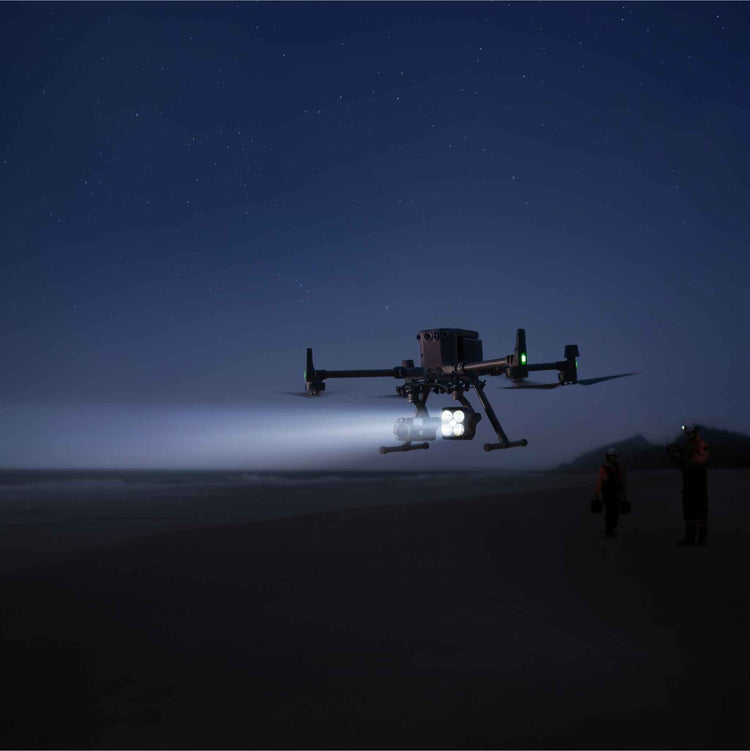

When two Zenmuse S1 are mounted on Matrice 400, both spotlights can be controlled at the same time, including turning the light on/off, brightness adjustment, and gimbal angle control. This feature is ideal for scenarios requiring large-area illumination, such as nighttime search and rescue operations.
Collaborative Ground and Air Operations
When used with Matrice 400 and the Zenmuse H30 Series, Zenmuse S1 supports remote real-time video viewing and spotlight control through DJI FlightHub 2.
Strong Environmental Adaptability
With an IP54 rating for dust and water resistance, [8] Zenmuse S1 can operate in ambient temperatures ranging from -20° to 40° C (-4° to 104° F), making it adaptable to various operating environments.
Tips
1. Download and read the safety guidelines and user manual from the DJI official website before using for the first time.
2. Using the spotlight at night may result in obstacle avoidance errors. You can disable obstacle avoidance as needed and operate the aircraft and spotlight in relatively open and spacious areas.
3. When using Zenmuse S1, do not look directly at the spotlight from a close distance to avoid potential harm. Please ensure safety.
4. Do not touch the spotlight lens coating directly with your hands or scratch it with hard objects, as this may reduce light output efficiency and affect luminous flux and illuminance.
Specifications
Weight: 760±10 g
Dimensions: 125×152×171 mm (L×W×H)
Rated Power: 68 W
Maximum Central Illuminance: 35 lux@100 m (Both On mode) [1]
Effective Illumination Distance: 500 m (Both On mode) [2]
Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 350 RTK
Ingress Protection Rating: IP54 [3]
Operating Temperature: -20° to 40° C (-4° to 104° F)
Compatibility
DJI Matrice 400
Matrice 350 RTK
Matrice 300 RTK
In the Box
Zenmuse S1× 1
Lens Peotection Cover × 1
Carrying Case × 1
Lens Cleaning Cloth× 1
